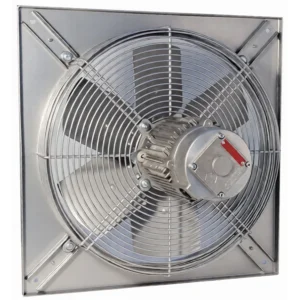

Part No: TXH1-500B4-1
The Pole Star TXH1-500B4-1 is a 230 volt, single phase ATEX, guard mounted axial fan, with a 503mm diameter fan blade, making these ATEX guard mounted axial fans suitable for ATEX rated hazardous areas; including industrial areas, which have tougher and demanding conditions.
These PSP ATEX rated guard mounted axial fans, are designed for hazardous industrial ventilation applications, and have the airflow as blowing, which provides maximum air extraction in heavy duty applications.
The TXH1-500B4-1 has an input power of 250 watts; with a motor speed of 1385 revolutions per minute.
Specification:
- Phase: Single-phase (1PH)
- Voltage: 230V (50/60Hz)
- Input Power: 250W
- Current: 2.1 A
- Motor Speed: 1385 RPM
- Air Volume: 5800 m³/h
- Blade Size: 503 mm diameter
- Airflow Direction: Blowing
- Motor Frame Size: 71
- IP Rating: IP55
- Capacitor: 8.0MF
- Insulation Class: F
- Operating Temperature Range: -40 degrees C to +60 degrees C
- Weight: 6kg
