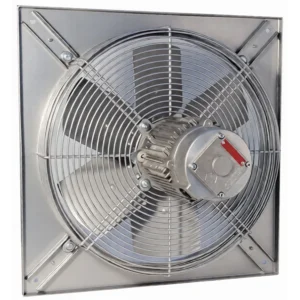

Part No: TXH1-310B4-1
The Pole Star TXH1-310B4-1 is a 230 volt, single phase ATEX, guard mounted axial fan, with a 316.5MM diameter fan blade, making these ATEX guard mounted axial fans suitable for ATEX rated hazardous areas; including industrial areas, which have tougher and demanding conditions.
These PSP ATEX rated guard mounted axial fans, are designed for hazardous industrial ventilation applications, and have the airflow as blowing, which provides maximum air extraction in heavy duty applications.
The TXH1-310B4-1 has an input power of 60 watts; with a motor speed of 1235 revolutions per minute.
Specification:
- Phase: Single-phase (1PH)
- Voltage: 230V (50/60Hz)
- Input Power: 60W
- Current: 1 A
- Motor Speed: 1235 RPM
- Air Volume: 1950 m³/h
- Blade Size: 316.5 mm diameter
- Airflow Direction: Blowing
- Motor Frame Size: 56
- IP Rating: IP55
- Insulation Class: F
- Operating Temperature Range: -40 degrees C to +60 degrees C
