Part No: SAE50/170

Skirting trunking external angle, for the Dietzel Univolt Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Part No: SEL50/170

Left hand end cap for the Dietzel Univolt Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these left hand skirting trunking end caps: Price = £3.49 each +VAT.

Part No: SER50/170

Right hand end cap for skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these right hand skirting trunking end caps: Price = £3.49 each +VAT.

Part No: SFTU50/170

Skirting trunking flat tee – upwards, for the Dietzel Univolt Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Part No: SFWU50/170

Skirting Trunking Flat Angle – Upwards, for the Dietzel Univolt Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Part No: SIE50/170

Skirting trunking internal angle, for the Dietzel Univolt Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these skirting trunking internal angles: Price = £5.98 each +VAT.

Part No: SK50/170

Skirting trunking cover joint, for use with Univolt’s Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these skirting trunking cover joints: Price = £3.49 each +VAT.

Part No: SLB1

Univolt 1 gang outlet box for use with Univolt’s range of 3 compartment dado trunking.

Please note these single socket outlet boxes are suitable for use with all three of the Univolt trunking ranges; which are the chamfered dado trunking, square dado trunking, and skirting trunking profiles.

These outlet boxes, are also suitable for the new Univolt SLS50/170 profile, round top, square profile 3 compartment skirting trunking.

Quantity discounts available.

Purchase 5 or more of these 1 gang socket boxes: Price = £3.79 each +VAT.

Part No: SLB1-A

Univolt 1 gang white PVC-U adjustable mounting socket outlet box for use with compatible Univolt Starline 3 compartment dado and skirting trunking.

The Univolt SLB1-A, 1 gang adjustable back boxes are adjustable between 30 and 50mm, allowing for a mounting depth of between 30-50mm.

Quantity discounts available.

Purchase 5 or more of these 1 gang adjustable back boxes: Price = £5.66 each +VAT.

Part No: SLB2

Univolt 2 gang outlet box for use with Univolt’s range of 3 compartment dado trunking.

Please note these double socket outlet boxes are suitable for use with all three of the Univolt trunking ranges; which are the chamfered dado trunking, square dado trunking, and skirting trunking profiles.

These outlet boxes, are also suitable for the new Univolt SLS50/170 profile, round top, square profile 3 compartment skirting trunking.

Quantity discounts available.

Purchase 5 or more of these 2 gang socket boxes: Price = £3.99 each +VAT.

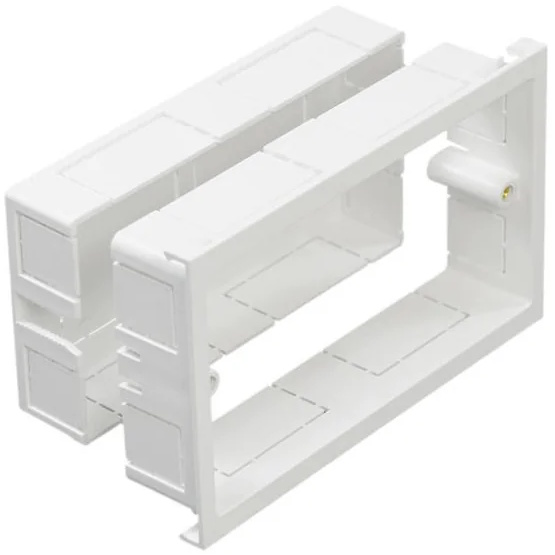

Part No: SLB2-A

Univolt 2 gang white PVC-U adjustable mounting socket outlet box for use with compatible Univolt Starline 3 compartment dado and skirting trunking.

The Univolt SLB2-A, 2 gang adjustable back boxes are adjustable between 30 and 50mm, allowing for a mounting depth of between 30-50mm.

Quantity discounts available.

Purchase 5 or more of these 2 gang adjustable back boxes: Price = £5.72 each +VAT.

Part No: SLS50/170

3 compartment skirting trunking supplied in 3 metre lengths.

Profile Size: 50 x 170mm.

The Starline range is made from a PVC non-flame material in a white (RAL 9010) colour, and complies with EN 50085, BS 4678 Part 4.

Skirting trunking has been produced for use in any office; and the main purpose of using this type of product, is so that you can easily have a number of different sockets, and data outlets, throughout your office, without the need for cutting holes in walls, and having to run power and data cables behind walls; to then have to fix the sockets inside the actual walls; ideal for office computer trunking.

The reason you don’t have to cut out holes in walls, is because this type of trunking can easily be fixed surface to many types of walls, and it’s separate inside compartments, means that you can easily separate different cables, and run these cables inside the different trunking sections, which will be hidden from view, once the plastic front cover lid has been put on.

With a range of different socket boxes, and angles, you can easily adapt this type of system to suit your office skirting trunking requirements.

Please note that the profile on this 3 compartment trunking is flat bottom and chamfered top.

Quantity discounts available.

Purchase 5 lengths or more of this skirting trunking: Price = £52.23 per 3 metres +VAT.

Please note that this product has been discontinued, and replaced by the Univolt SLSR50/170 3 compartment Starline skirting trunking, which has a round top, and square bottom.

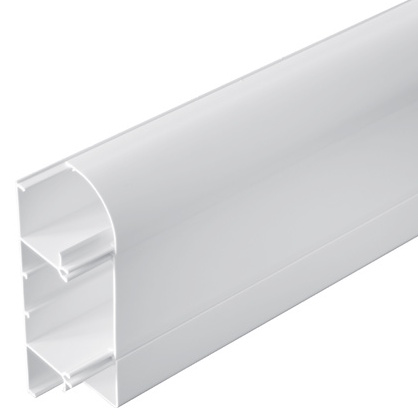

Part No: SLSR50/170

Univolt Starline 3 compartment skirting trunking round top, square bottom, profile skirting trunking, supplied in 3 metre lengths.

Profile Size: 50 x 170mm.

The Univolt Starline range of 3 compartment skirting trunking, is made from a PVC non-flame material in a white (RAL 9010) colour, and complies with EN 50085, BS 4678 Part 4.

Univolt Skirting trunking has been produced for use in any office; and the main purpose of using this type of product, is so that you can easily have a number of different sockets, and data outlets, throughout your office, without the need for cutting holes in walls, and having to run power and data cables behind walls; to then have to fix the sockets inside the actual walls; ideal for office computer trunking.

The reason you don’t have to cut out holes in walls, is because this type of trunking can easily be fixed surface to many types of walls, and it’s separate inside compartments, means that you can easily separate different cables, and run these cables inside the different trunking sections, which will be hidden from view, once the plastic front cover lid has been put on.

With a range of different socket boxes, and angles, you can easily adapt this type of system to suit your office skirting trunking requirements.

Please note that the profile on this 3 compartment trunking is square bottom and round top.

Quantity discounts available.

Purchase 5 lengths or more of this skirting trunking: Price = £39.50 per 3 metres +VAT.

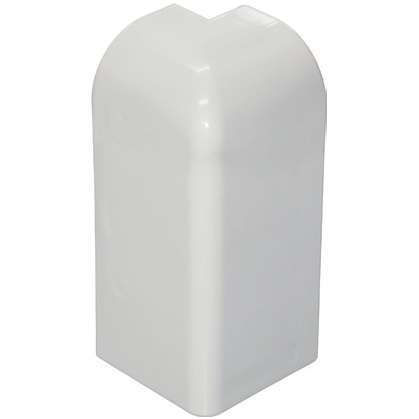

Part No: SRAE50/170

Univolt skirting trunking external angle, for the Dietzel Univolt SLSR50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these  skirting trunking external angles: Price = £7.94 each +VAT.

Part No: SREL50/170

Univolt left hand end cap for the Dietzel Univolt SLSR50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these left hand skirting trunking end caps: Price = £4.42 each +VAT.

Part No: SRER50/170

Univolt right hand end cap for the Dietzel Univolt SLSR50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

Quantity discounts available.

Purchase 5 or more of these right hand skirting trunking end caps: Price = £4.42 each +VAT.

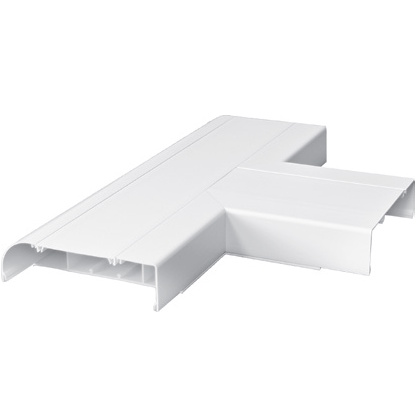

Part No: SRFTD50/170

Univolt skirting trunking flat tee – downwards, for the Dietzel Univolt SLSR50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

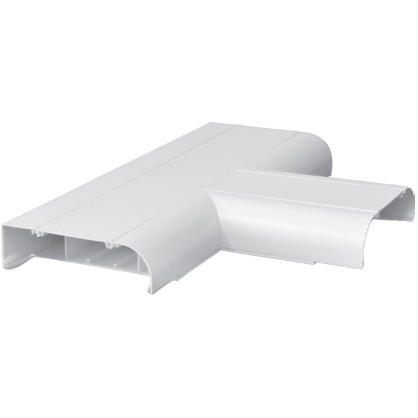

Part No: SRFTU50/170

Univolt skirting trunking flat tee – upwards, for the Dietzel Univolt SLSR50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

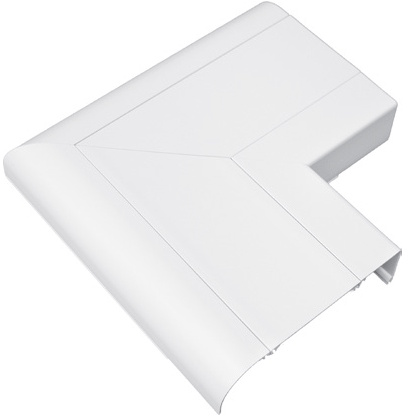

Part No: SFWD50/170

Univolt skirting trunking flat angle – downwards, for the Dietzel Univolt SLS50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC

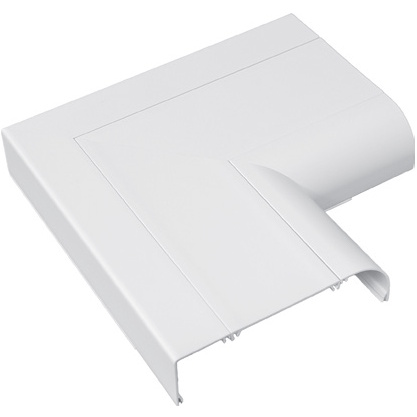

Part No: SRFWU50/170

Univolt skirting trunking flat angle – upwards, for the Dietzel Univolt SLS50/170 Starline range of 3 compartment skirting trunking.

Specification:

• Colour: White
• Material: PVC
