Part No: CH06CPiRX

Consort Claudgen CH06CPiRX wall mounted commercial fan heater in a white and grey finish; ideal for warehouses and other large commercial areas which require an instant heat source.

The Consort CH06CPiRX fan heater, will produce a maximum heat coverage of 7 metres.

These 3 phase commercial fans heaters have what’s know as “an intelligent fan control” which causes the fan speed to change automatically, in relation to the current temperature of the room.

The reason behind this, is so that the heater can achieve warm airflow temperature; and this in turn, stops it from throwing out cold air, when it is first switched on, in a cold room.

Consort CH06CPiRX Specification:

• 6kW
• Three phase
• Suitable for both a single and three phase electricity supply
• 3 fan speeds, 3 heat settings with the CRXSL controller (in manual mode)
• Ideal Mounting Height: 2 – 3.4 metres
• 59dBA (maximum)
• Height: 272mm
• Width: 332mm
• Depth: 338mm
• Weight: 11.5kg

Please note that a separate CRXSL wireless controller is required, to operate these fan heaters, which is sold separately.

Please also note that there is an optional CHMC electronic touchscreen controller, which can be used to operate these fan heaters remotely, via the Consort Connect app, which is also sold separately.

Part No: CH06CSiRX

Consort Claudgen CH06CSiRX wall mounted commercial fan heater in a white and grey finish; ideal for warehouses and other large commercial areas which require an instant heat source.

The Consort CH06CSiRX fan heater, will produce a maximum heat coverage of 7 metres.

These commercial fans heater have what’s know as “an intelligent fan control” which causes the fan speed to change automatically, in relation to the current temperature of the room.

The reason behind this, is so that the heater can achieve warm airflow temperature; and this in turn, stops it from throwing out cold air, when it is first switched on, in a cold room.

Consort CH06CSiRX Specification:

• 6kW
• Single phase
• 3 fan speeds, 3 heat settings with the CRXSL controller (in manual mode)
• Ideal Mounting Height: 2 – 3.4 metres
• 52dBA (maximum)
• Height: 272mm
• Width: 332mm
• Depth: 338mm
• Weight: 11.5kg

Please note that a separate CRXSL wireless controller is required, to operate these fan heaters, which is sold separately.

Please also note that there is an optional CHMC electronic touchscreen controller, which can be used to operate these fan heaters remotely, via the Consort Connect app, which is also sold separately.

Part No: CH09iRX

Consort Claudgen CH09iRX three phase wall mounted commercial fan heater in a white and grey finish; ideal for warehouses and other large commercial areas which require an instant heat source.

The Consort CH09iRX fan heater, will produce a maximum heat coverage of 11 metres.

These 3 phase commercial fan heaters have what’s know as “an intelligent fan control” which causes the fan speed to change automatically, in relation to the current temperature of the room.

The reason behind this, is so that the heater can achieve warm airflow temperature; and this in turn, stops it from throwing out cold air, when it is first switched on, in a cold room.

Consort CH09iRX Specification:

• 9kW
• Suitable for three phase electricity supply only
• 3 fan speeds, 3 heat settings with the CRXSL controller (in manual mode)
• Ideal Mounting Height: 2 – 3.4 metres
• 59dBA (maximum)
• Height: 272mm
• Width: 332mm
• Depth: 338mm
• Weight: 11.5kg

Please note that a separate CRXSL wireless controller is required, to operate these fan heaters, which is sold separately.

Please also note that there is an optional CHMC electronic touchscreen controller, which can be used to operate these fan heaters remotely, via the Consort Connect app, which is also sold separately.

Part No: CH12iRX

Consort Claudgen CH12iRX three phase wall mounted fan heater; manufactured to cope with those larger commercial warehouse and factory areas, which require immediate heat.

The Consort CH12iRX fan heater, will produce a maximum heat coverage of 11 metres.

These 3 phase commercial fan heaters have what’s know as “an intelligent fan control” which causes the fan speed to change automatically, in relation to the current temperature of the room.

The reason behind this, is so that the heater can achieve warm airflow temperature; and this in turn, stops it from throwing out cold air, when it is first switched on, in a cold room.

Consort CH12iRX Specification:

• Colour: White and grey
• 12kW
• Suitable for three phase electricity supply only
• 3 fan speeds, 3 heat settings with the CRXSL controller (in manual mode)
• Ideal Mounting Height: 2 – 3.4 metres
• 59dBA (maximum)
• Height: 272mm
• Width: 332mm
• Depth: 338mm
• Weight: 11.5kg

Please note that a separate CRXSL wireless controller is required, to operate these fan heaters, which is sold separately.

Please also note that there is an optional CHMC electronic touchscreen controller, which can be used to operate these fan heaters remotely, via the Consort Connect app, which is also sold separately.

Part No: CH15iRX

A wall mounted fan heater; manufactured to cope with those larger commercial warehouse and factory areas, which require immediate heat.

This unit will produce a maximum heat coverage of 11 metres; and is supplied with a remote switch.

These commercial fans heater have what’s know as “an intelligent fan control” which causes the fan speed to change automatically, in relation to the current temperature of the room.

The reason behind this, is so that the heater can achieve warm airflow temperature; and this in turn, stops it from throwing out cold air, when it is first switched on, in a cold room.

Specification:

• Colour: White and grey
• 15kW
• Suitable for three phase electricity supply only
• 2 heat settings
• Ideal Mounting Height: 2.5 – 4 metres
• 59dBA (maximum)
• Height: 300mm
• Width: 360mm
• Depth: 390mm
• Weight: 14kg

Please note that a separate CRXSL wireless controller is required, to operate these fan heaters, which is sold separately.

Please note that this product has been discontinued. Please see product code CH12iRX, which is the 12kW 3 phase commercial fan heater, which is the largest wattage fan heater in this range, that is available.

Part No: CHES

Consort Claudgen CHES, optional indoor commercial heater environmental sensor; which is compatible with the Consort Claudgen CHMC touchscreen controller.

Specification:

• Optional sensor for indoor use
• Compatible with the Consort CHMC controller
• Remote switch connection, to use ON/OFF function, or boost, via the volt free external input
• Occupancy sensor
• Temperature sensor
• Height: 82mm
• Depth: 57mm
• Width: 80mm

Please click here to view or download the pdf installation and operating manual on the Consort CHMC electronic touchscreen controllers

Part No: CHMC

The Consort CHMC electronic touchscreen controller, is an optional controller, which can be used with the Consort Claudgen CH06CSirX, CH06CPiRX, CH09iRX, and CH12iRX commercial fan heaters.

The Consort CHMC controller can control up to 8 of the Consort commercial fan heaters, and is Wi-Fi enabled, as there is the Consort Connect App, which allows the user to have full functionality of the CHMC controller remotely.

These electronic touchscreen controllers will also display the temperature, as well as the fan speed for any of the connected heaters.

Specification:

• Can control up to 8 heaters, either on their own, or as a group
• Can be situated in a different room to the heaters
• Temperature sensor
• 8 fan speeds, and 8 heat settings in manual mode
• 2 operating modes, which are manual and temperature control
• 7 day timer with 2 heat periods each day
• For air circulation there is a fan only setting
• Wi-Fi enabled for connection to the Consort Connect App
• Electronic lock
• Displays individual, as well as total energy usage of heaters
• Compatible with building management systems

Please click here to view or download the pdf installation and operating manual on the Consort CHMC electronic touchscreen controllers

Part Number: CRXSL

The new CRXSL wireless controller works with all of Consort Claudgens RX and SL range of wireless recessed and surface ceiling fan heaters; and air curtains.

This modern and stylish controller, features open window technology, which cleverly detects any change in temperature in the room, saving energy by turning off the heating, when it detects a sudden drop in temperature from an open window, or open door.

Specification:

• Mains powered
• Slim design and for wall mounting
• Fits onto a standard double box
• Height: 85mm
• Depth: 34mm
• Width: 145mm

Energy Saving Benefits:

• 6 temperature settings for each day
• 7 day heating programs for each week
• Can maintain a temperature within 0.5 degrees C
• Temperature can be set, within 0.5 degree increments

Please note this product replaces the previous CRX2 controller, and older CRXSL controller.

Part Number: CRXSLWIFI

The new CRXSLWIFI wireless controller works with all of Consort Claudgens RX and SL range of wireless recessed and surface ceiling fan heaters; and air curtains, and has WiFi capability, when it is being used.

The CRXSLWIFI wireless controller, can be used to connect any of the Consort Claudgen RX and SL range of heaters to the Consort Connect App.

The Consort Connect App, allows you to have complete control of your heating, remotely, whilst being away from the building, where the heating is installed.

This modern and stylish controller, features open window technology, which cleverly detects any change in temperature in the room, saving energy by turning off the heating, when it detects a sudden drop in temperature from an open window, or open door.

Specification:

• Mains powered
• Slim design and for wall mounting
• Fits onto a standard double box
• Only works with 2.4GHz WiFi networks
• Height: 85mm
• Depth: 34mm
• Width: 145mm

Energy Saving Benefits:

• 6 temperature settings for each day
• 7 day heating programs for each week
• Can maintain a temperature within 0.5 degrees C
• Temperature can be set, within 0.5 degree increments

Part No: HRXSL

The Consort HRXSL, is a battery operated handheld remote control, for use with Consort Claudgen’s RX and SL range of wireless controlled heaters.

Specification:

• Battery operated (supplied with 2x AA batteries)
• Works with all Consort Claudgen RX and SL wireless heaters
• Quick and easy pairing to heaters
• Open window detection
• Modern and stylish design
• Security wall bracket included
• Automatic, manual temperature control, boost, and frost protection operating modes
• 15 minute boost feature, for quick maximum comfort
• Fan only mode for heaters, which are compatible
• Time / manual mode for heaters, which are compatible
• Not compatible with the MRX1 controller
• 6 temperature settings each day
• 7 day heating programmes each week
• Half heat for compatible heaters, when reaching target temperature
• Can maintain temperature within 0.5 degrees C
• Set temperature within 0.5 degrees C
• Height: 141mm
• Depth: 20mm
• Width: 54mm

Part No: LC

The Consort Claudgen LC, master landlord wireless controller, is ideal for use in commercial buildings, such as hotels, restaurants, shops, large offices, and student accommodation, or any other building, where a central controller is required to be able to control all the heater temperatures.

For this to work, you would have the MLC master landlord controller, as well as one or more of the LC (landlord wireless controllers), all connected to the required Consort Claudgen RX or SL heaters.

Occupants in a room are able to adjust the room temperature on the LC controller, for a set length of time, before the LC controller, then goes back to the programmed temperature.

The LC wireless heating controller can be used as signal repeaters in order to extend the signal range. In this instance, if the LC controller is set as a repeater; it has to be mains powered.

Specification:

• Mains or battery powered
• Compatible with all of Consort Claudgen’s SL and RX range of wireless heaters
• Able to control multiple heaters in a room
• Open window detection feature
• Allows the user to be able to adjust the room temperature temporarily
• Backlit LED display
• Modern design
• Height: 89mm
• Depth: 23mm
• Width: 136mm

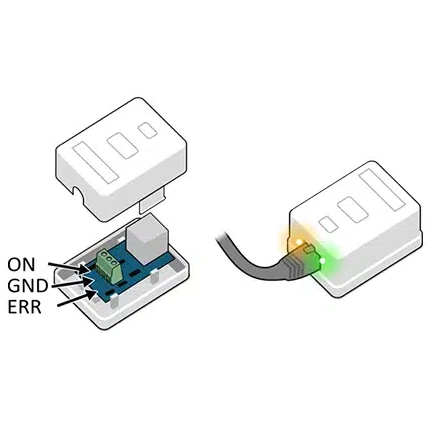

Part No: MCBMS

The Consort Claudgen MCBMS, is a simple BMS connection, which needs to be used with a Consort CHMC controller, and also a Consort CH fan heater as well; when used as a switch.

The MCBMS, has two functions, which are:

1. BMS error reports
2. External remote, or boost switch connection

Specification:

• Maximum of 8 heaters on each system
• Green LED indicates power to the device
• Orange LED to indicate when there is a fault picked up in one of the heaters
• Remote switch connection for BMS, On/Off ability, or boost
• Temperature can be increased for a set duration, with the boost function

Please click here to view or download the pdf installation and operating manual on the Consort CHMC electronic touchscreen controllers

Part No: MLC

The Consort Claudgen MLC, master landlord wireless controller, is ideal for use in commercial buildings, such as hotels, restaurants, shops, large offices, and student accommodation, or any other building, where there is a requirement to be able to control all the heater temperatures.

For this to work, you would have the MLC master landlord controller, as well as one or more of the LC (landlord wireless controllers), all connected to the required Consort Claudgen RX or SL heaters.

Specification:

• Mains powered
• Can control an unlimited number of LC controllers (landlord wireless controllers)
• The same 7 day programme and time for all LC controllers would be set via this
• Easy to set up and programme
• 2 operating modes : 7 day programme and constant temperature
• Backlit LED display
• Modern design
• Option to be able to limit the minimum and maximum temperature
• Temperature can be displayed in either degrees Celsius or degrees Fahrenheit
• Height: 89mm
• Depth: 23mm
• Width: 136mm

Part No: SLPBWP

The Consort Claudgen SLPBWP wireless controller, run back timer and thermostat, has been designed for use outdoors, as well as use in bathrooms and wet rooms.

Ideal for use in any commercial building where a heating cycle is needed to be operated, only when a controller is activated.

Specification:

• IP65 rated
• Can control multiple SL heaters
• Easy operation
• Mains powered 240V, or 12V DC, which allows SELV installation
• 3 operating modes (basic, timer, and temperature control)
• 3 time periods to choose from, 15, 30 and 60 minutes
• For frost protection setback temperatures can be used, or for maintaining a minimum room temperature of between 0 to 15 degrees C
• Light indicator around the button to show controller status
• There is an external input available, for connecting to any voltage free contact
• Power adapter not included
• Height: 81mm
• Depth: 57mm
• Width: 83mm

Part No: SLPIR

The Consort Claudgen SLPIR wireless controller, when activated from up to 5 metres away, this controller allows the heater to increase the room temperature, to achieve it’s set temperature setting.

Specification:

• Can control multiple SL heaters, or SL receivers
• Motion sensor has a range of up to 5 metres
• 60 degree vertical detection range
• 120 degree horizontal detection range
• Easy operation
• Mains powered 240V, or 12V DC, which allows SELV installation
• Fits most standard 1 gang back boxes
• Controller will act as a run back timer, when a full heating period is triggered
• 4 time periods to choose from, 5, 15, 30 and 60 minutes
• For frost protection setback temperatures can be used, or for maintaining a minimum room temperature of between 0 to 15 degrees C
• Light indicator with 4 segments for counting down the time
• There is an external input available, for connecting to any voltage free contact
• Power adapter not included
• Height: 86mm
• Depth: 26mm
• Width: 85mm

Part No: CZC1

Wireless thermostat / timer controller for Consort Claudgens HE7010W high level fan heaters.

• Can control more than one heater
• Temperature control to within one degree
• Battery powered
• Frost watch mode
• 7 day clock (up to six temperature settings per day)
• LED display can displays temperature in either degrees fahrenheit or degrees celsius
• Dimensions: (H)100 x (D)20 x (W)132mm

Part No: HE7001

Optional remote control for use with Consort Claudgens HE7010 and HE7020 high level fan heaters.

Part No: HE7010

These 3kW wall mountable fan heaters from Consort Claudgen are ideal for use as shop heating above the main entrance doorway to the shop, when customers enter the shop from a cold outdoors; and require that quick burst of hot air to warm them up. Other applications include use above doors in hotel main entrances, use for workshop heating and store room heating.

• Voltage: 230/240 volts
• Maximum mounting height: 2.3 metres
• Colour: Dove white
• Quiet operation
• Optional remote switch (Part number HE7001) available, which gives the option of fan only, or fan plus heater operation
• Weight: 4kg
• dBA: 44
• Adjustable wall mountable bracket supplied, which enables the angle of heat flow to be selected by the user
• Dimensions: (H)210 x (D)115 x (W)485mm

Please note that with these wall mounted fan heaters a 200mm minimum ceiling clearance is required.

Part No: HE7010RX

These 3kW wall mountable fan heaters with wireless control, from Consort Claudgen are ideal for use as shop heating above the main entrance doorway to the shop, when customers enter the shop from a cold outdoors; and require that quick burst of hot air to warm them up. Other applications include use above doors in hotel main entrances, use for workshop heating and store room heating.

Specification:

• Voltage: 230/240 volts
• Maximum mounting height: 2.3 metres
• Colour: White
• Quiet operation
• Wireless controlled (CRXSL wireless controller required)
• Adjustable wall mountable bracket supplied, which enables the angle of heat flow to be selected by the user
• Weight: 4kg
• dBA: 44
• Dimensions: (H)210 x (D)115 x (W)485mm

Please note that with these wall mounted fan heaters a 200mm minimum ceiling clearance is required.

Please also note that the CRXSL wireless controller is sold separately.

Part No: HE7010SL

These 3kW SL wall mountable fan heaters with wireless control, from Consort Claudgen are ideal for use as shop heating above the main entrance doorway to the shop, when customers enter the shop from a cold outdoors; and require that quick burst of hot air to warm them up. Other applications include use above doors in hotel main entrances, use for workshop heating and store room heating.

Specification:

• Voltage: 230/240 volts
• Maximum mounting height: 2.3 metres
• Colour: White
• Quiet operation
• Wireless controlled (CRXSL wireless controller, or SL controller required)
• Adjustable wall mountable bracket supplied, which enables the angle of heat flow to be selected by the user
• Weight: 4kg
• dBA: 44
• Dimensions: (H)210 x (D)115 x (W)485mm

Please note that with these wall mounted fan heaters a 200mm minimum ceiling clearance is required.

Please also note that the CRXSL wireless controller and other SL controllers are sold separately.
