Part No: KFR-33IW/X1c

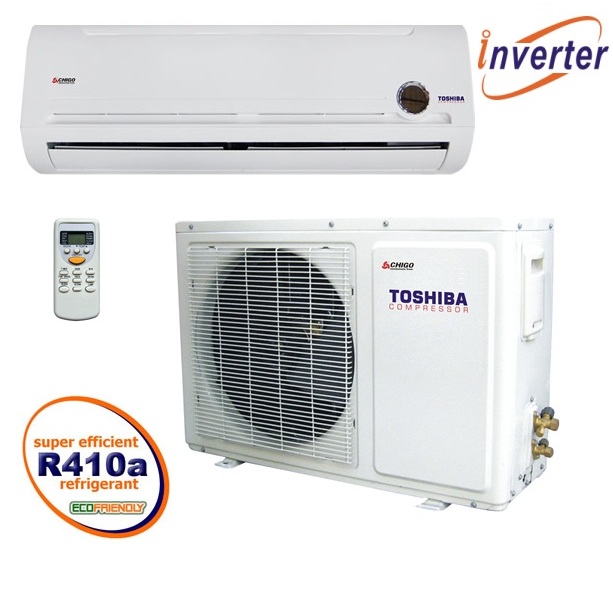

These EASYfit split air conditioning units, consist of two parts, an internal and an external unit. The internal unit is fitted to a wall via a metal mounting plate; and the external unit is fitted just outside of the building. The two units are then connected via Copper pipe. The external unit, which is the condenser, removes the heat from inside the room and carries it outside, along with any condensation that has built up inside the system; whilst the internal unit provides the cooling.

Please note that these units will also heat the room when required.

Features

• Powered by a Toshiba Compressor
• Pre-gassed inverter air conditioning unit to cope with up to a 6 metre pipe run
• Supplied with remote control with luminous night light
• Fan speeds are adjustable for rapid cooling or to minimise noise
• Heat pump models provide the choice of both heating and cooling
• Oscillating air vanes for dissipation of cold air
• Built in timer feature which will turn the unit on and off automatically
• High efficiency air filters which remove odours and particles
• Anti-mould coating for hygienic operation
• Digital display to show the operational settings and temperature
• A “Smart Air” feature which will bring up previous settings at the push of a button

Specifications

• Cooling capacity: 3.5kW / 12000 BTU
• Cooling power input: 1.060
• Cooling current input: 4.6
• EER: 3.21
• Energy rating: AA
• Annual consumption: 530 kWh
• Heating capacity: 13000 BTU
• Heating power input: 1.095kW
• Heating current input: 4.5A
• COP: 3.62
• Max power input: 2.24kW
• Max current input: 9.70A
• Maximum room size unit is suitable for: 25 square metres
• Maximum conservatory size unit is suitable for: 12 square metres

Indoor Unit

• Air flow volume: >_560 m3/h
• Noise level: 32-42 dB(A)
• Weight: 10kg
• Dimensions: 800x280x190mm

Outdoor Unit

• Noise level: 54 db(A)
• Refrigerant charge quality: 1100g
• Weight: 40kg
• Dimensions: 795x255x540

Pipe Size Information

• 1/4 – 3/8 inches
• Standard pipe length: 3.5m
• Maximum pipe length: 20.00m
• Maximum height difference between outdoor and indoor units: 10.00m
• Unit supplied with 4 metres of pipe
• Utilises R410a refrigerant
